Cannondale Topstone CAAD 3 CUES 1x Flat Bar 2027 Tech Green
CANNONDALE TOPSTONE CAAD 3 CUES 1X FLAT BAR 2027 TECH GREEN

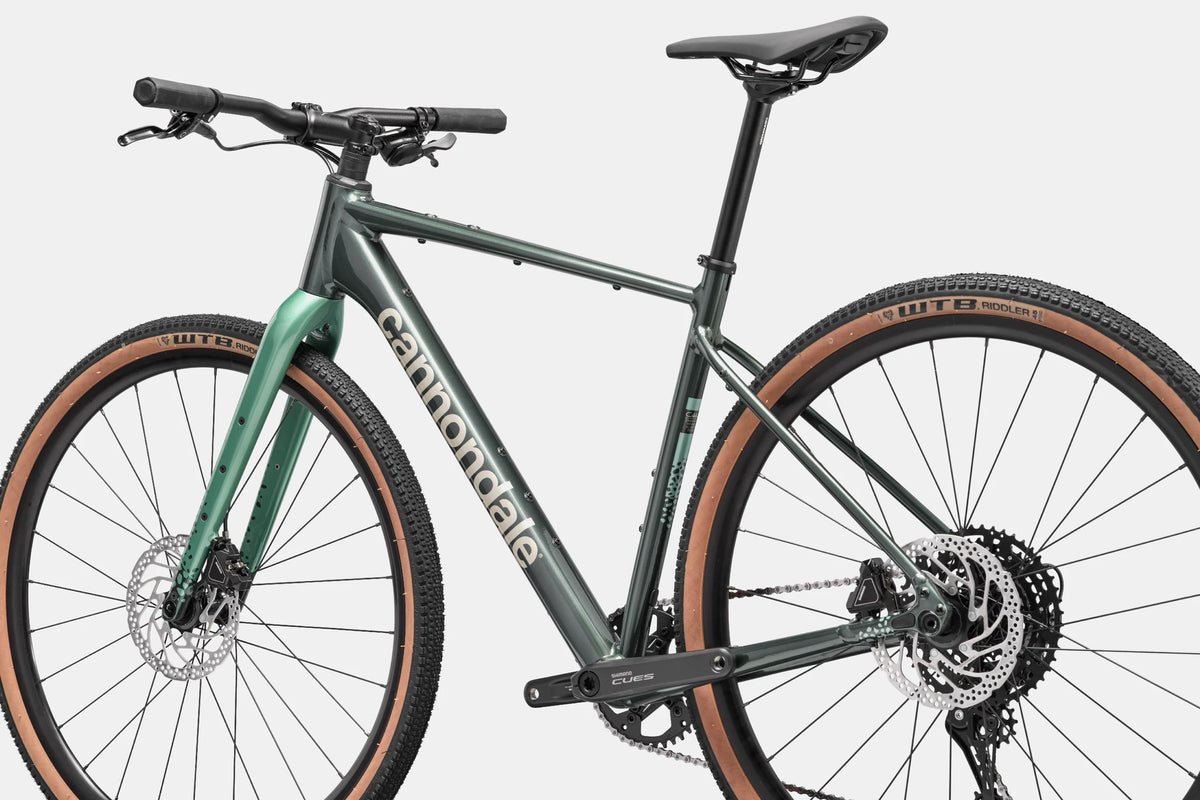

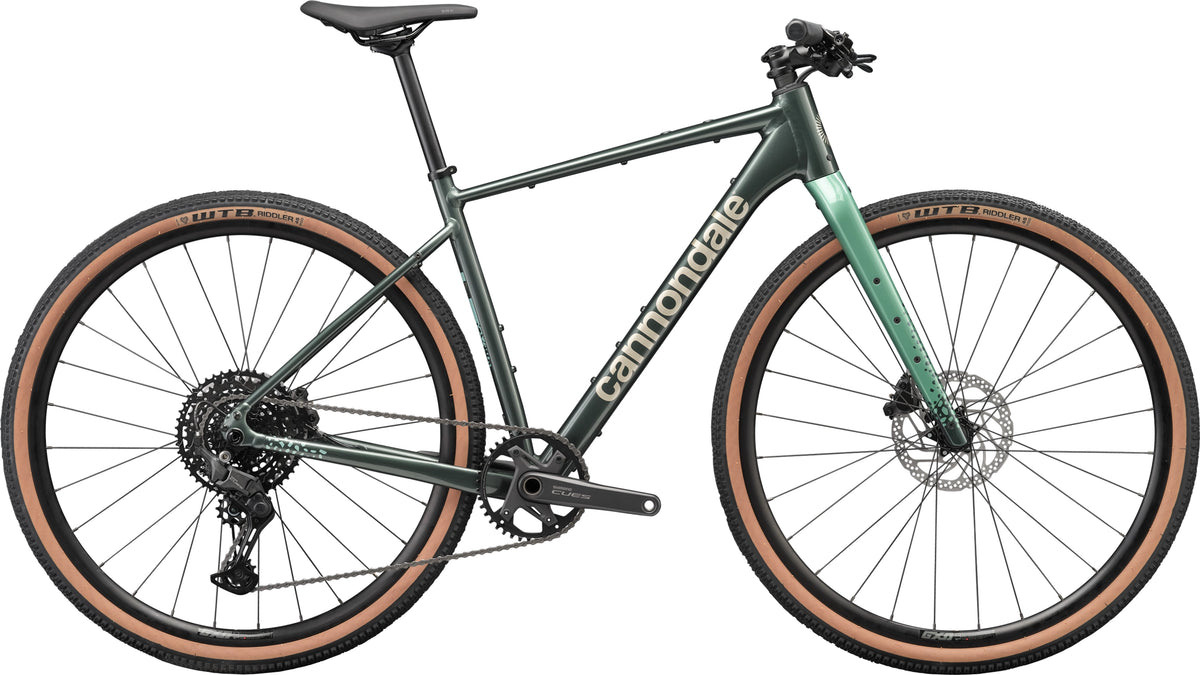

The Topstone CAAD 3 CUES 1x Flat Bar 2027 pairs Cannondale’s gravel platform with a riser handlebar. It is an option for linking city streets, quiet roads and tracks with a hand position familiar to riders of mountain bikes and hybrids.
The SmartForm C1 aluminium frame and carbon fork include mounting points to adapt your equipment. Shimano CUES 1x10 gearing pairs a 40-tooth chainring with an 11-48 cassette. CUES UR300 hydraulic brakes, the 740 mm Cannondale 3 Riser handlebar and WTB Riddler Comp 45 mm tyres complete a setup for everyday journeys and leisure rides on mixed surfaces.
OutFront steering geometry combines a 55 mm fork offset with a relaxed head angle for stability on gravel and responsive handling. The frame uses a UDH hanger, a threaded 68 mm BSA bottom bracket and a 27.2 mm seatpost. Multiple mounting points make it easy to adapt the bike for daily journeys, gravel rides and trips with luggage. Tyre clearance accommodates a measured width of up to 52 mm, with 4 mm of clearance on each side.
FEATURES
- Frame: SmartForm C1 aluminium; thru-axles; UDH hanger; StraightShot internal cable routing
- Fork: Topstone carbon; 12x100 mm thru-axle; 55 mm OutFront offset
- Drivetrain: Shimano CUES U6000, 1x10; chainring 40 teeth; cassette 11-48 teeth
- Brakes: Shimano CUES UR300; hydraulic disc; 160/160 mm
- Wheels: GXD 1.0, 28 spokes, 23mm internal width
- Tyres: WTB Riddler Comp, 700x45c, tubeless ready
- Mounts: bottles, bags, racks and mudguards
Build details

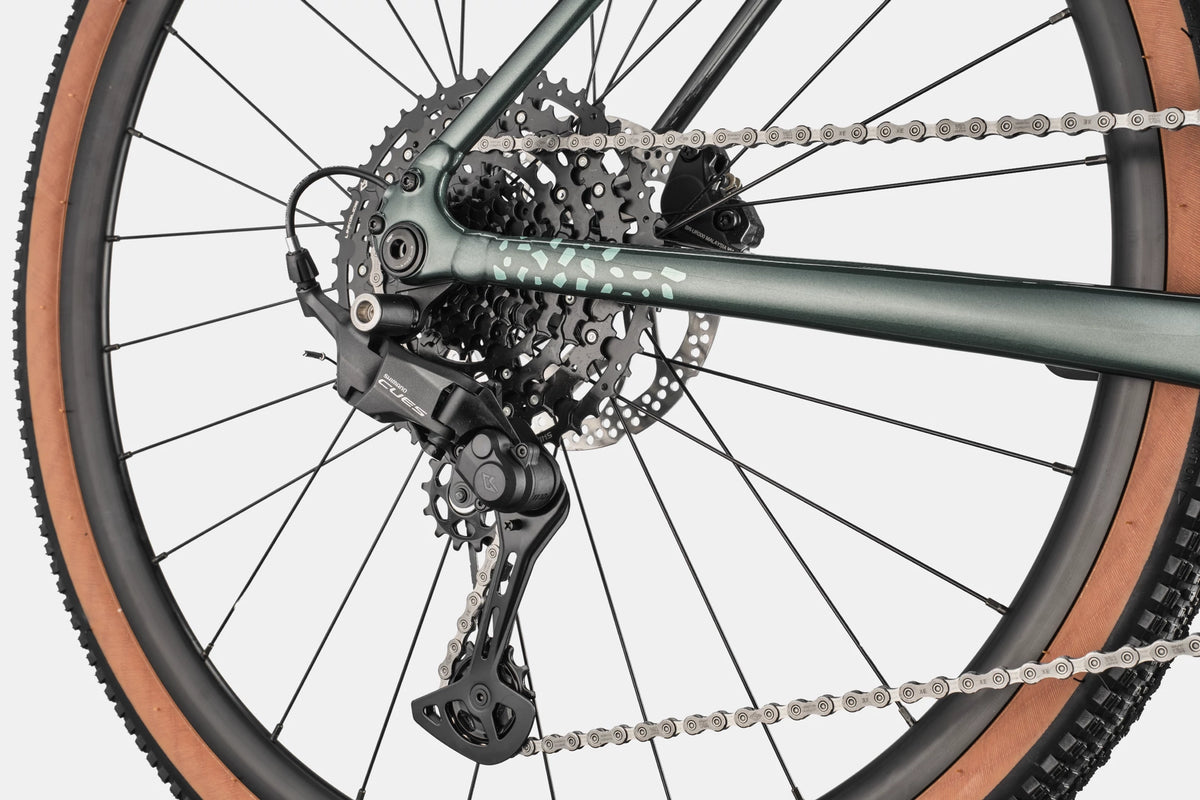

- Rear derailleur: Shimano CUES U6000, Shadow RD+, 10-speed
- Shifters: Shimano CUES U6000, 10-speed
- Chain: Shimano LG500, LinkGlide, 11-speed
- Saddle: Selle Royal SRX Open, 145mm
- Seatpost: Cannondale 3, 6061 Alloy, 27.2x350mm
- Headset: Acros IS52/40 ICR
- Stem: Cannondale 3, 6061 Alloy, 31.8, 7°: 70mm (47-51m), 80mm (54cm), 90mm (56-58cm), 100mm (61cm)
Tubeless valves are included. Tubeless compatibility does not mean the bike is delivered with a completed tubeless setup.
Specifications published by Cannondale may change according to component availability.
Pedals are not included.
- Size:
- 51
Pairs well with
In stock! Ships within 1-2 business days.
90-day risk-free trial
2-Year Warranty
Complimentary shipping & returns
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Product details
General
- Year
- 2027
- Gender
- Unisex
- Wheel size
- 700
Frame
- Frame
- Topstone CAAD, SmartForm C1 Alloy, 12x142 thru-axle, 27.2 dropper compatible seat tube, 1.5" Acros-compatible headtube, BSA 68mm threaded BB, flat mount disc - 160mm native, UDH, StraightShot internal cable and dynamo routing, multiple gear/bottle mounts, 18mm two-bolt kickstand mount, rack and fender compatible, suspension-ready geometry
- Fork
- Topstone Carbon, 1-1/8" to 1.5" steerer, 55mm OutFront offset, flat mount disc, integrated cable and dynamo routing, 12x100 thru-axle, triple bottle/gear mounts, fender mounts
- Headset
- Acros IS52/40 ICR
- Frame model
- Topstone CAAD
Cockpit
- Handlebars
- Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 740mm
- Stem
- Cannondale 3, 6061 Alloy, 31.8, 7°: 70mm (47-51m), 80mm (54cm), 90mm (56-58cm), 100mm (61cm)
- Grips
- Cannondale XC Silicone
Brakes
- Front brake
- Shimano CUES UR300 hydraulic disc, 160/160mm RT30 centerlock rotors
- Rear brake
- Shimano CUES UR300 hydraulic disc, 160/160mm RT30 centerlock rotors
- Brake levers
- Shimano CUES UR300 hydraulic disc
Saddle
- Saddle
- Selle Royal SRX Open, 145mm
- Seatpost
- Cannondale 3, 6061 Alloy, 27.2x350mm
Drivetrain
- Shift levers
- Shimano CUES U6000, 10-speed
- Rear derailleur
- Shimano CUES U6000, Shadow RD+, 10-speed
- Cassette
- Shimano CUES LG300, 11-48, 10-speed
- Chain
- Shimano LG500, LinkGlide, 11-speed
- Crankarms

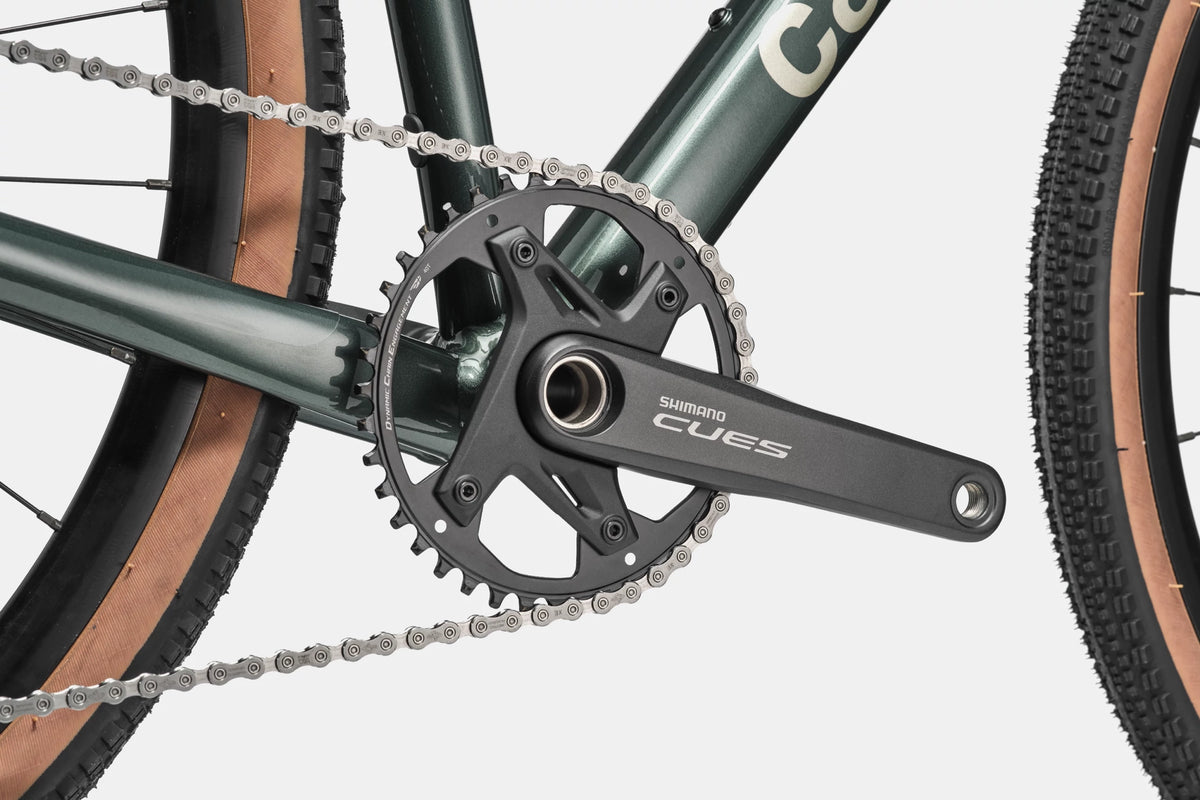

- Shimano CUES 6030, 40T, 165mm (47cm), 170mm (51cm), 172.5 (54-56cm), 175mm (58-61cm)
- Chainrings
- 40 D
- Crankset
- Shimano CUES 6030, 40T, 165mm (47cm), 170mm (51cm), 172.5 (54-56cm), 175mm (58-61cm)
- Bottom bracket
- Shimano BSA 68
- Pedals
- Not included
- Speeds
- 10
Wheels
- Front tire
- WTB Riddler Comp, 700x45c, tubeless ready
- Rear tire
- WTB Riddler Comp, 700x45c, tubeless ready
- Rims
- GXD 1.0, 28h, 23mm inner width
- Front hub
- Shimano TC500, 12x100mm, centerlock
- Rear hub
- Shimano TC500, 12x142mm, centerlock, HG driver
- Spokes
- Stainless Steel, 14g
*Images are for illustrative purposes only and may differ from the final product. Colours may vary depending on the screen used.
*Please note that technical specifications may be changed without prior notice by the manufacturer.
